FPU DOCK SEAL

FPU Dock Seal.jpg

ACCOMMODATES LARGER DOORS AND PROVIDES A POSITIVE FOAM SEAL AND WIPING ACTION AGAINST TRUCK SIDES



DESIGNED FOR DOOR OPENINGS UP TO 10 FT WIDE X 9 FT HIGH

FPU Series Dock Seal—accommodates larger doors and provides a positive foam seal and wiping action against truck sides.  Provides full access side-to-side with this model.

  • Cover material and wear pleats are top-grade fabrics providing superior performance and maximum durability
  • High-density polyurethane foam provides long life and excellent resiliency characteristics
  • Foam is bonded with high strength adhesive to select grade pressure-treated, kiln-dried wood framing for long-lasting installation
  • Standard side pad projection is 16″, maximum is 24″
  • Standard head pad projection is 10″
  • Standard side pad penetration is 12″
  • Heavy-duty galvanized mounting hardware
  • Full-height yellow guide stripe standard
  • Brass grommets with spur washers for venting
  • All sew lines are locked stitched utilizing heavy bonded polyester multifilament thread with UV protectant for extended life

Dock Seal Details

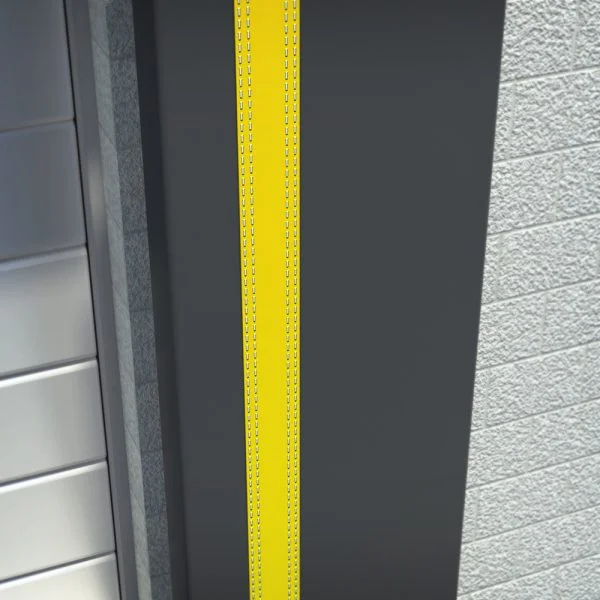

Guide Stripe
Guide Stripe
FPU Grommets
FPU Grommets

OPERATION

Dock seals can significantly improve the energy efficiency and environment control of buildings, reducing costs.  They provide an effective barrier against the elements, keeping loading docks safe and efficient.

Dock seals provide a positive seal between internal and external environments.  They prevent the passage of dust, insects, exhaust fumes and other airborne particulate matter while the loading dock is in use.



STRUCTURAL

Airtight Dock Seals are constructed from high density polyurethane foam and solid wood.  Cover material and wear pleats are top-grade fabrics providing superior performance and maximum durability.



SAFETY FEATURES

Dock seals help avoid safety and productivity problems associated with unprotected openings, such as:

  • Employee discomfort
  • Energy loss
  • Theft or security concerns
  • Product damage or contamination
  • Insect infiltration
  • Slippery or dangerous dock conditions



OPTIONs

  • Wear pleats
  • Wear face
  • Scuff guards
  • Bottom door flaps (1 to 3 sides)
  • Drop curtains, with or without Velcro® brand attachments
  • Pull rope system for drop curtains
  • Chain weighted drop curtain
  • 2″ foam-filled drop curtain
  • Flame retardant foam & fabric
  • Top corner pleats only
  • 24″ high yellow guide stripe
  • Blockouts
  • Galvanized metal backs
